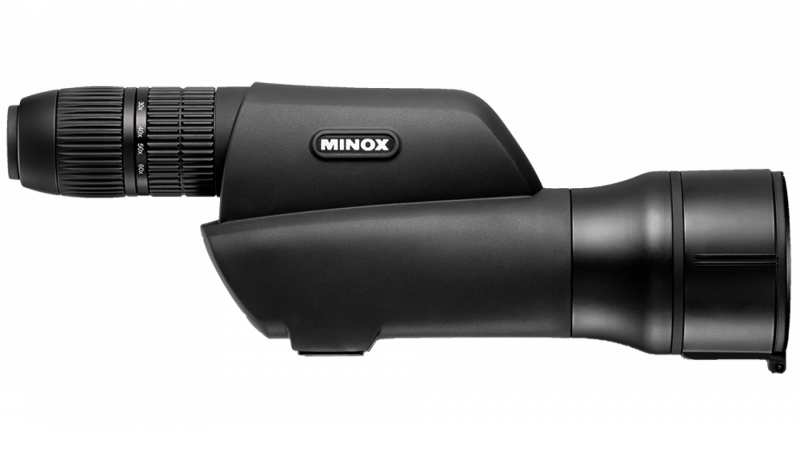

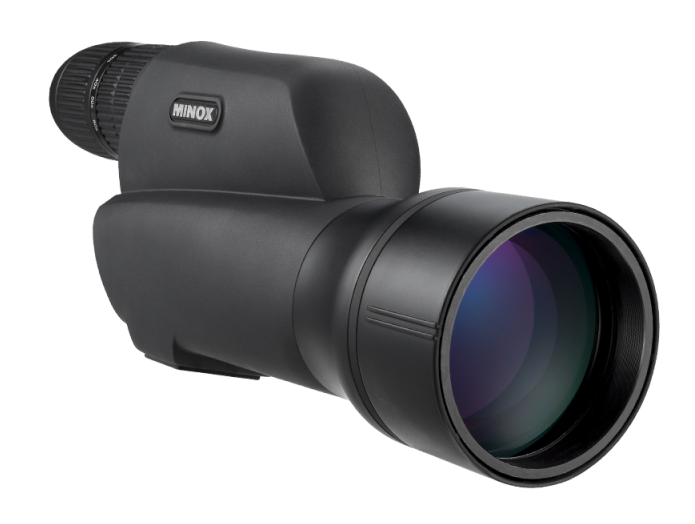

MINOX Spotting Scopes MD 80 ZR 20-60x
[80405437]

They bring life in your hunting grounds even closer - with a brilliant image, high contrast and neutral color rendition: the super-compact MD 60 ZR and MD 80 ZR spotting scopes. Their innovative optical design is a whole 20% shorter than conventional spotting scopes, making them much easier to transport. With their steplessly adjustable oculars for 12x - 40x or 20x - 60x magnifications, they offer even more flexibility and mobility thanks to their straight ocular. Both models can even be used to estimate distances.





Features:

• Brilliant image
• High contrast, neutral color rendition
• Magnifications: 12-40x (MD 60 ZR), 20-60x (MD 80 ZR)

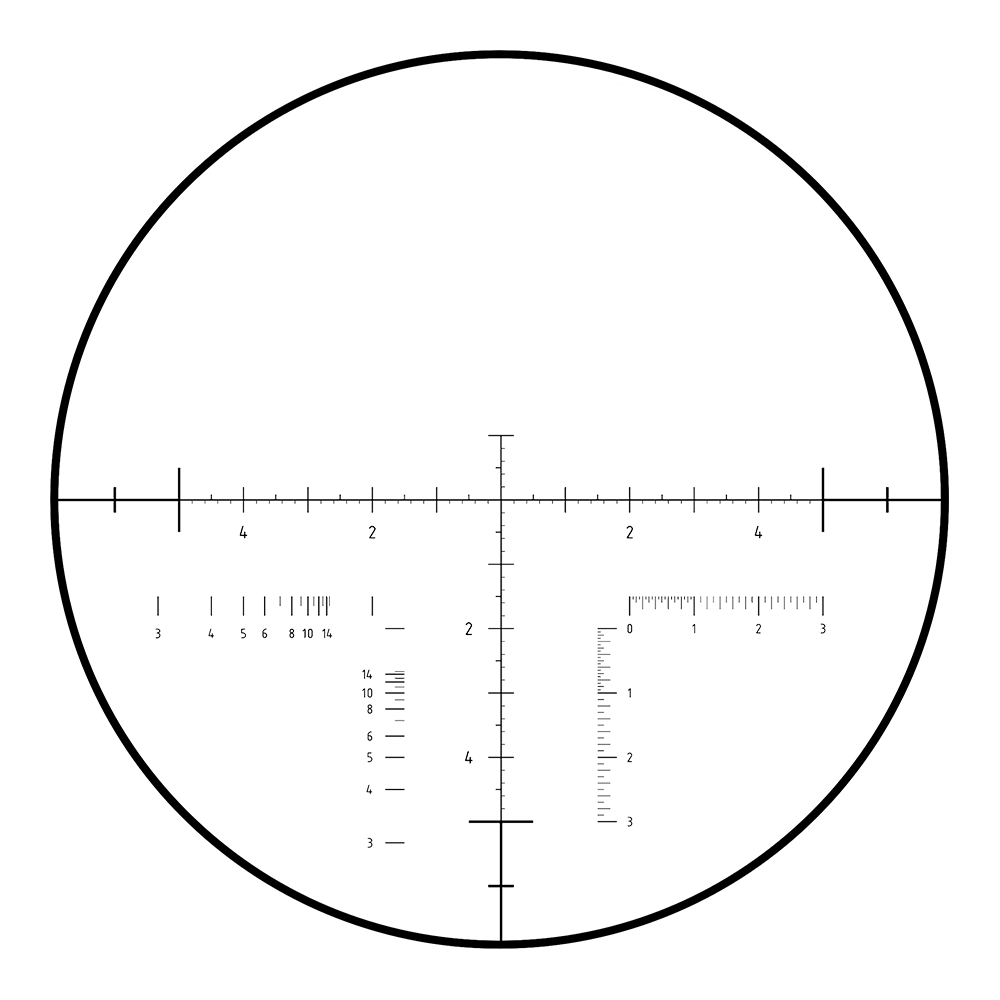

• MR2-S reticle at the 1st focal plane for reliable distance estimations
• Robust, shock-resistant metal housing
• Waterproof according to IPX7 and nitrogen purged against internal fogging





Included in Delivery

1x Spotting scope

1x Nylon carrying case

1x Ocular protection cap

1x Hinged objective protection cap

1x Optics cleaning cloth

1x Instruction manual





Technical Data

Model: 20 x - 60 x

Magnification: 20 x - 60 x

Lens diameter: 80 mm

Exit pupil: 4,0 - 1,3 mm

Diopter adjustment: ± 5 dpt.

Field of view at 1,000 m: 40 m / 2,3°, 14 m / 0,8°

Eye relief: 30 mm

Close focus:  7 m

Twilight factor:  16,0 - 1,7

Operating temperature: -10° bis +45° C

Waterproof according to IPX7: Yes

Dimensions (HxWxD): 138 x 94 x 385 mm

Weight: 2.190 g
